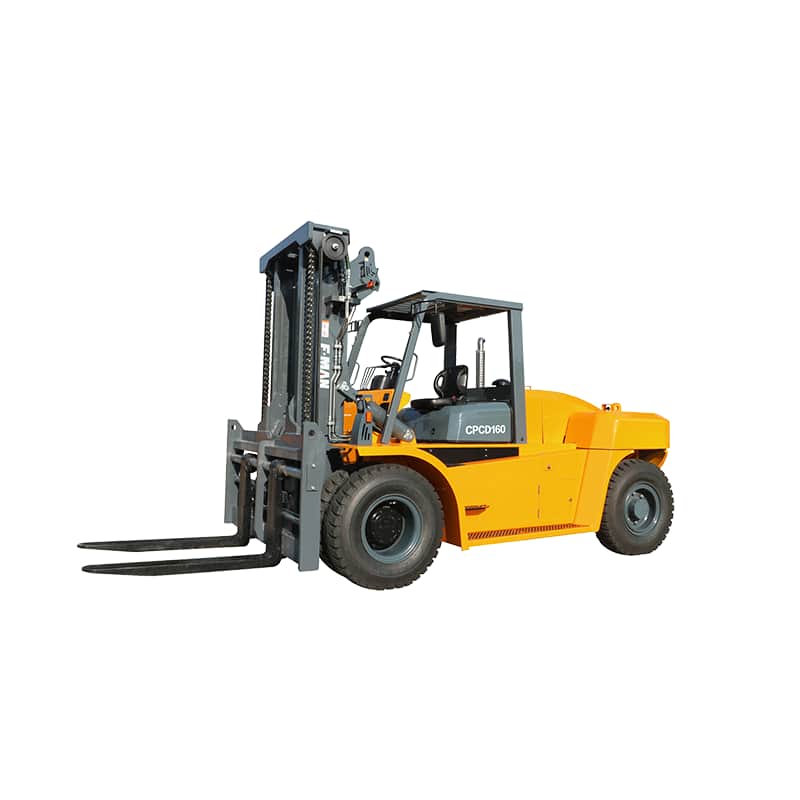

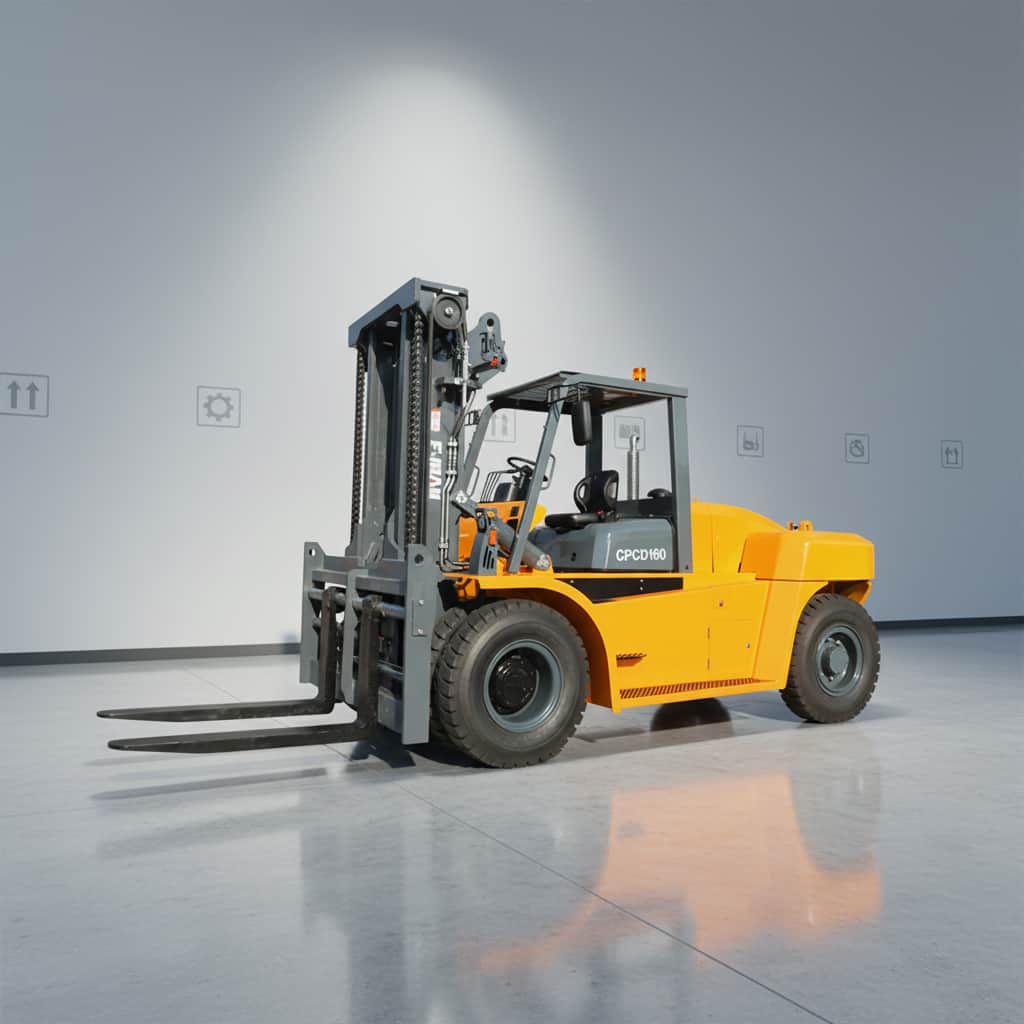

The FMAN CPCD160 is a 16-ton diesel forklift designed specifically for heavy industrial and port logistics operations. The entire machine has been enhanced and optimized in terms of power performance, load capacity, and structural stability, meeting the demands of heavy-duty material handling and high-intensity continuous operation. With a rated load of 16,000 kg, it can efficiently handle the loading and unloading of steel, machinery, and large industrial components.

The power system offers a dual-power configuration option:

Yuchai YC6J175-T302 engine, rated power 129 kW / 2200 r.p.m, maximum torque 710 Nm / 1600–1800 r.p.m, providing smooth power output and good fuel economy, suitable for high-frequency heavy-duty logistics operations.

The Cummins QSF6.7 engine, with a rated power of 142 kW / 2300 r.p.m and a maximum torque of 930 Nm / 1500 r.p.m, provides enhanced power reserves, making it particularly suitable for heavy-duty climbing and high-intensity industrial environments.

The machine's unloaded weight reaches 25,000 kg. Its heavy-duty frame structure significantly improves operational stability and impact resistance, making heavy-duty lifting safer and more reliable. The optimized mast system is constructed from high-strength structural steel, offering excellent deformation resistance and effectively extending the equipment's service life.

The machine's overall dimensions are 5885 × 2620 × 3300 mm (L × W × H, excluding forks). Its robust and compact layout provides good adaptability even in large industrial sites and port terminals. The wide wheelbase chassis design further enhances lateral stability, making turning and driving safer and smoother when fully loaded.

The hydraulic system is highly responsive, with smooth and precise lifting and lowering movements, improving loading and unloading efficiency and reducing operational intensity. Key components of the vehicle have undergone rigorous testing under demanding conditions, demonstrating high reliability and durability.
