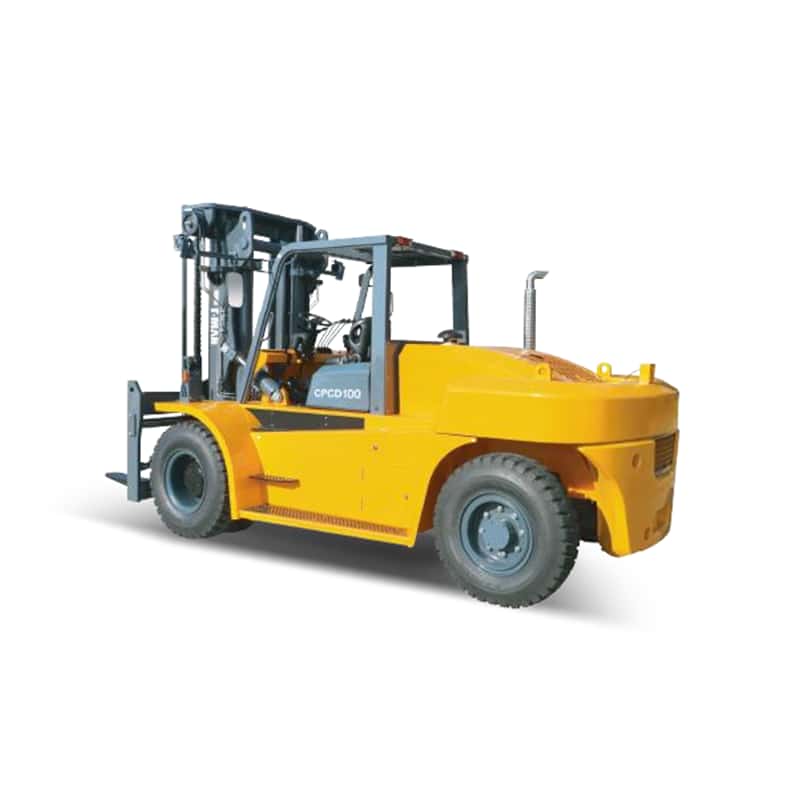

The FMAN CPCD100 is a 10-ton diesel forklift designed specifically for heavy-duty operations, widely applicable to port terminals, steel logistics, heavy machinery handling, and large-scale warehouse loading and unloading. The machine features a high-strength frame design, offering excellent load-bearing stability and torsional resistance, maintaining reliable performance under high-intensity continuous operation.

This model has a rated load of 10,000 kg and an unloaded weight of 13,640 kg, ensuring a stable center of gravity and high operational safety. It is equipped with a YCA05115-T480 high-performance diesel engine, with a rated power of 85 kW / 2200 r.p.m and a maximum torque of 500 Nm / 1400–1600 r.p.m, providing strong power output and smooth response, balancing heavy-duty traction with fuel economy.

The overall dimensions of the machine are 4252 × 2268 × 2600 mm (length × width × height, excluding forks). Its compact structure allows for flexible operation in confined spaces. The ergonomic cab design enhances operator comfort, while optimized hydraulic system response ensures more precise and efficient lifting, lowering, and tilting movements.

The FMAN CPCD100 is a heavy-duty industrial material handling machine that combines high load capacity, reliability, durability, and high operational efficiency, suitable for various heavy-duty logistics operations.
